NucleoSpin® 96 DNA RapidLyseProduct information
High throughput DNA isolation for all common liquid handling platforms
- Unique lysis chemistry to release genomic DNA from a variety of sample materials in one hour or less
- Manual or automated processing by vacuum, positive pressure, or centrifugation
- Easy automation on robotic platforms
Principle / Procedure
The isolation of genomic DNA (gDNA) from the majority of organs is a challenging task. Organs are composed of different tissues with various types of cells and matrices. Large molecules such as collagens and proteoglycans can impede lysis and even impair downstream enzymatic reactions (e.g., PCR). The new NucleoSpin® 96 DNA RapidLyse kit uses a unique lysis chemistry to release gDNA from organs and cells with the highest efficiency.
|Processing||Centrifuge, positive pressure, or vacuum (manual or automated)|
|Sample material||Fresh, frozen, dried, and ethanol preserved organs
Tail and ear clippings
|Sample amount||Up to 30 mg fresh weight; 1 x 106 cells|
|Lysis time||60 min. or less|
|Preparation time||60 min / 96 preps (excl. lysis)|
|Typical yield||Up to 4 μg DNA per mg tissue|
|Elution volume||100 µl|
|A260/A280||1.7 - 1.9|
Manual or automated isolation of DNA from human and animal tissue, cultured cells, or bacteria.
* Kits to be used for research purposes only.
Highest DNA Yields

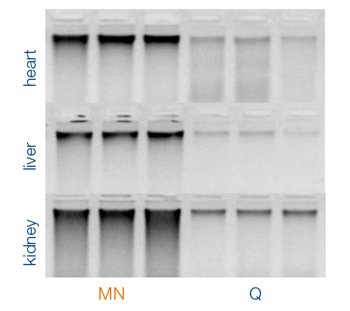

Different mammalian organs were lysed and DNA was extracted. Same amounts of individual eluates were subjected to gel electrophoresis. Highest yields of DNA could be extracted with NucleoSpin® 96 DNA RapidLyse. Q represents a competitor kit, MN represents NucleoSpin® 96 DNA RapidLyse.
Best qPCR performance

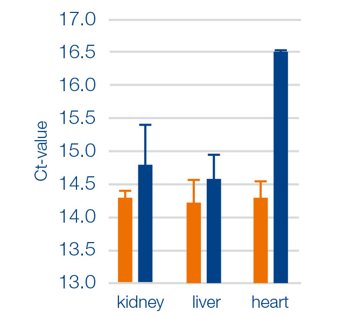

DNA was isolated with NucleoSpin® 96 DNA RapidLyse (orange) or with a kit from Competitor Q (blue). A 136 bp fragment of the 18S rRNA gene was amplified by qPCR. Lowest Ct-values were detected when DNA was isolated with NucleoSpin® 96 DNA RapidLyse, indicating highest gDNA yields.
Cost efficient HTP solution

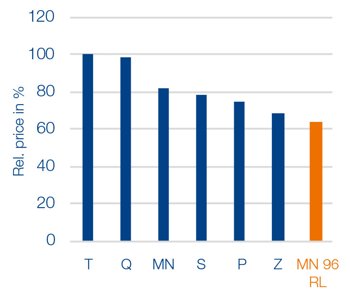

The average prep price of NucleoSpin® DNA 96 RapidLyse was compared to prep prices for other high-throughput genomic DNA purification products. The NucleoSpin® 96 DNA RapidLyse is the most cost-efficient product for gDNA isolation compared to competitors R, Q, T, Z, and S. MN represents NucleoSpin® 96 DNA RapidLyse.
The supporting documents available for this product can be downloaded below.
